Ultrafide Audio DIAS-U8
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Specificaties
Informatie

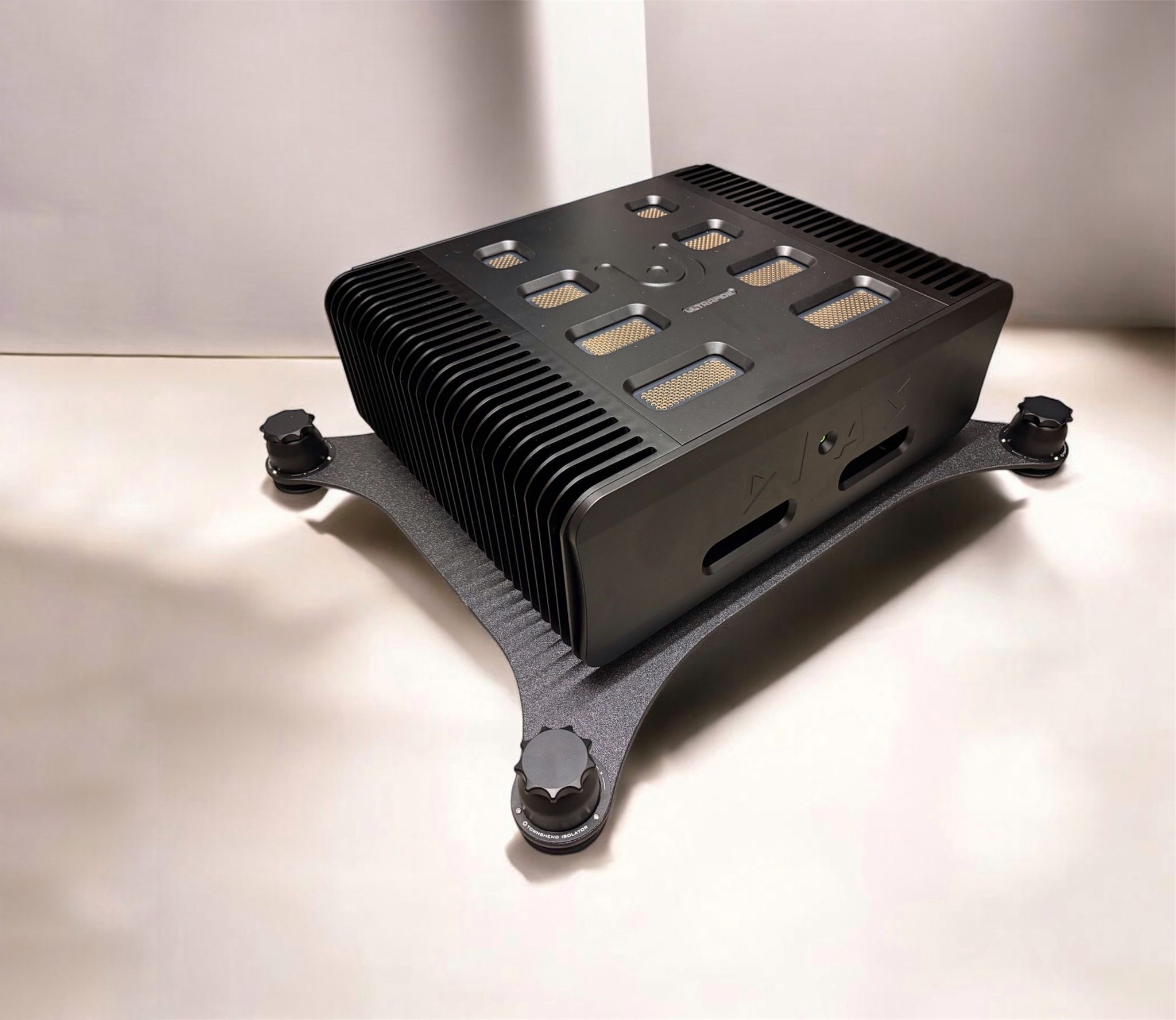

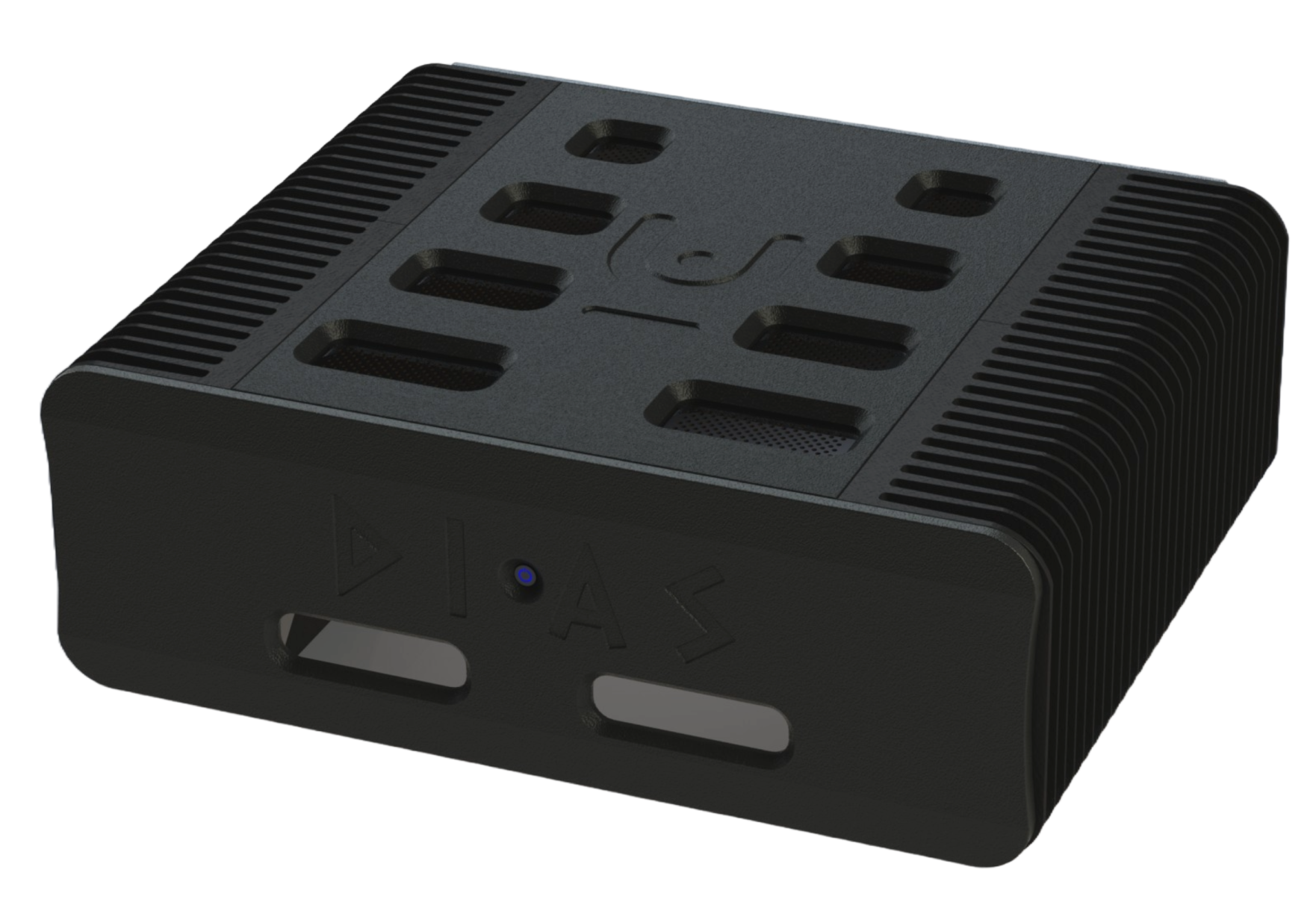

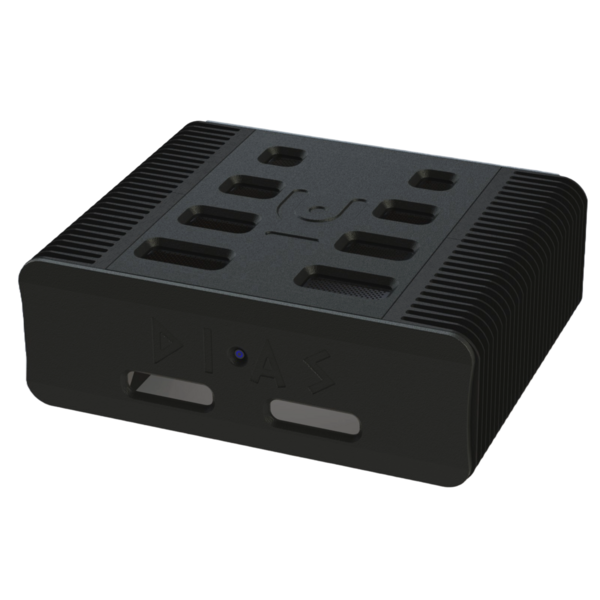

Harness the power of the gods with Ultrafide’s new statement piece, DIAS-U8.
Seamlessly blending classic and modern design, it’s an amplifier that delivers pure, superior Class AB power with exceptional precision across two independent channels. Housed in a beautiful chassis with the total weight at a whopping 50KG!
A massive 2kW of pure class AB power, across 2 totally independent channels. In-House class AB design, incorporating our unique TC Drive (TCD) technology 12 premium output devices per channel incorporating TLB technology (equal current sharing & therefore no bias affected audible changes)
Dual Mono - Separate channel HT and separate low power auxiliary rails ensures TOTAL channel independence True fully balanced design - XLR inputs and passive link outs. No peak current limiting therefore no sonic colouration Large 1000VA custom designed toroidal transformer linear PSU
Special care and attention to ground paths to totally eliminate any ground induced noise
Only 2 capacitors (1 per side) between input/output signal - DC coupling elsewhere
Frequency Response: 5Hz - 20Khz +/- 0.5dB
Noise: -73dBu (Un-Weighted 22-22KHz)
Dynamic Range: 110dB (Un-Weighted 22-22kHz)
Distortion (4R): 0.008% at 300W | 0.05% at 500W
Rise/Fall Time: 5uS
