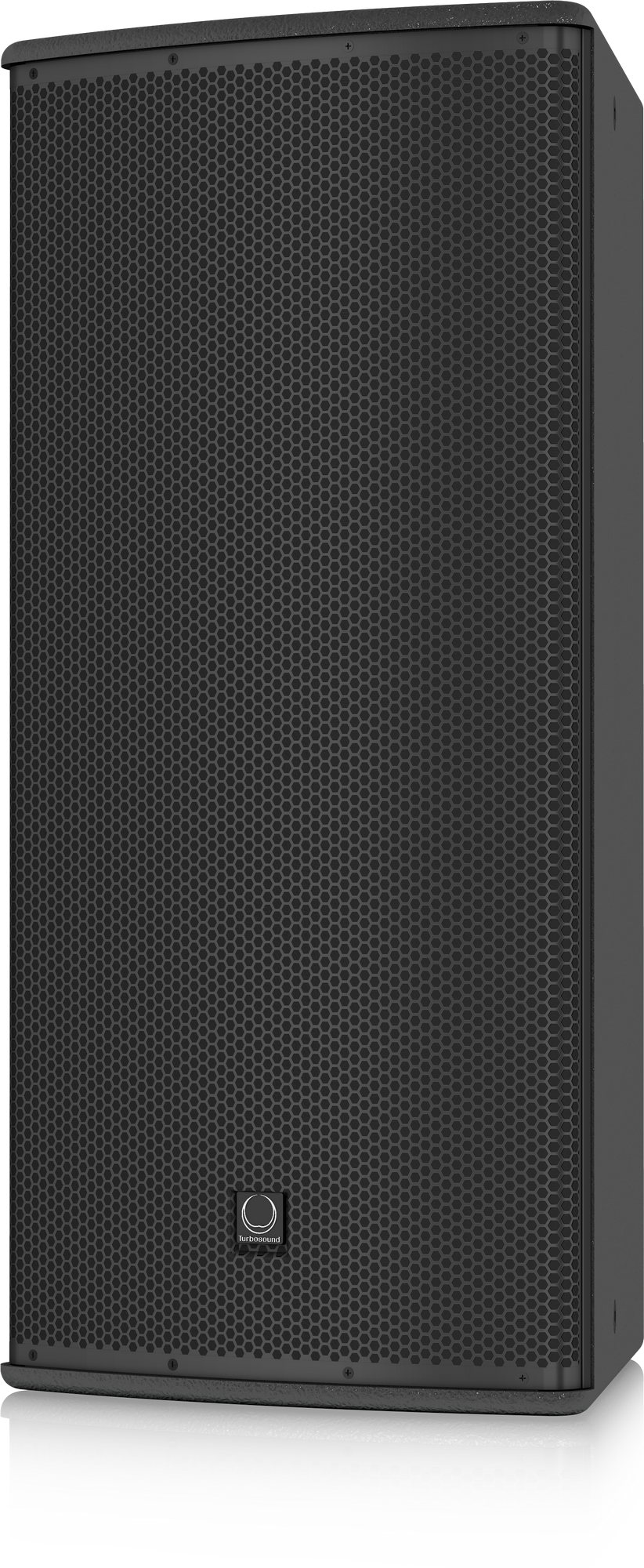

Turbosound TCS122/64
€--,-- Excl. tax
In stock (1)
Arrayable 2 Way 12" Full Range Loudspeaker with Dendritic Waveguide for Installation Applications, 60° H x 40° V Dispersion Read more
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Specifications
Brand:
Turbosound
Flying Hardware:
M10 x 9, M8 X 8 points
Wiring:
Passive: Pins 1+ / 1- input, pins 2+ / 2- link | Bi-Amp: Pins 1+ / 1- LF, pins 2+ / 2- HF
Crossover Type:
Passive / bi-amp, switchable
impedance:
Passive: 8 Ohm | Bi-Amp: LF: 8 Ohm, HF: 6 Ohm
Warranty:
10 years manufacturer's warranty*
Weight:
26.5 kg (58.4 lbs)
Dimensions:
834 x 399 x 425 mm (32.8 x 15.7 x 16.7")
Enclosure:
15 mm (5/8 ") Birch Plywood
Accessories:
TCS122-FP (WH) fly plate kit | TCS-FK1 (WH) inter-cabinet coupler kit | TCS-FK2 (WH) inter-cabinet coupler kit (accessories not included)

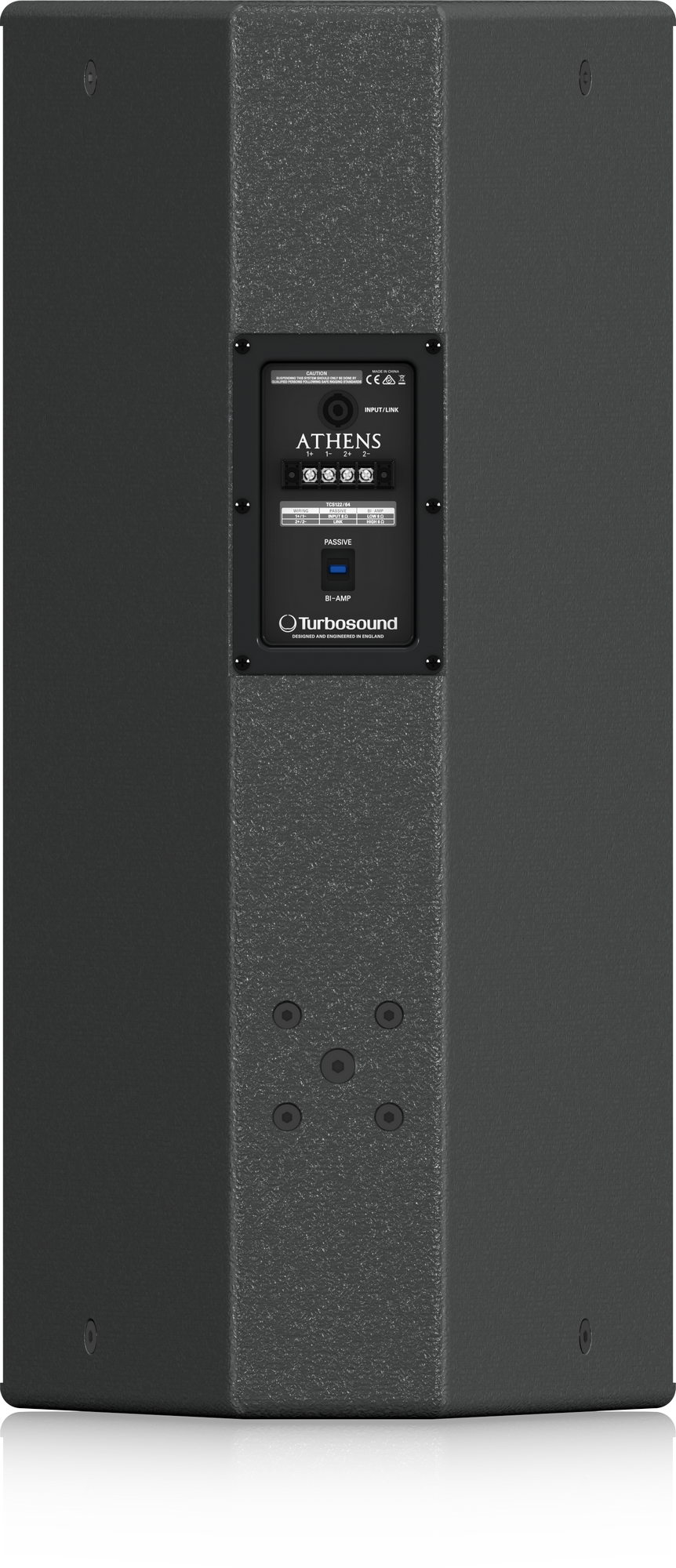

Connectors:
1 x Neutrik speakON* NL4 | 1 x barrier strip terminals
Output power:
Passive: 600 W continuous, 2400 W peak | Bi-Amp: LF: 600 W continuous, 2400 W peak HF: 75 W continuous, 300 W peak
Maximum SPL:
Passive: 124 dB continuous, 130 dB peak | Bi-Amp: LF: 124 dB continuous, 130 dB peak HF: 128 dB continuous, 134 dB peak
Nominal Dispersion:
60° H x 40° V @ -6 dB points, rotatable
Frequency Response:
50 Hz - 18 kHz ±3 dB | 45 Hz - 20 kHz -10 dB
Transducers:
1 x 12" (312 mm) LF driver | 1 x 1.4" (36 mm) HF compression driver
Configuration:
Arrayable, 2-way, Full range
Information
12'' Full Range Loudspeaker
