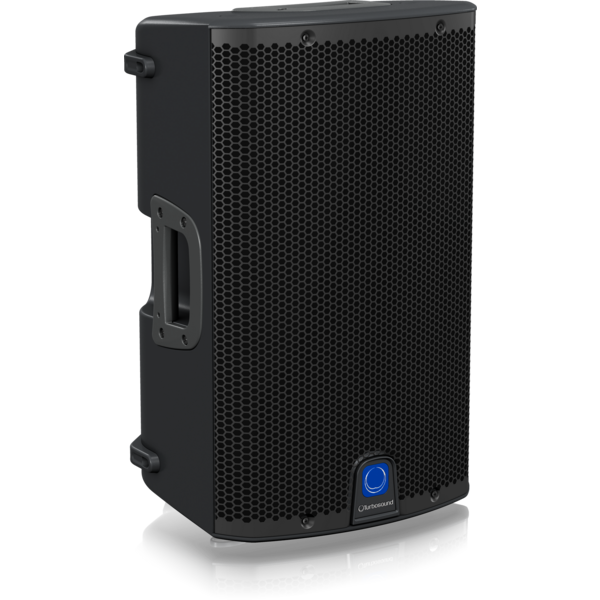

The Turbosound IQ10 is a 10" 2 way full range loudspeaker for portable PA and installation applications. 2,500 Watt power featuring KLARK TEKNIK Class-D technology.
The Turbosound IQ10 is a 10" loudspeaker with two drivers for a full range freqencyrange. The speakers are self-powered which eliminates the need for an external amplifier. The IQ10 uses a 2500W Klark Teknik D-class amplifier. The IQ-series uses Klark Teknik Signal Processing software for complete control over the system. The System is easy to access via the LCD-display with easy-to-use selector- and rotary switch.
The Speaker can be connected to your mixing console or other digital audio source via Ultranet. If you would like remote control capabilities you can easily download and install the drives on your computer.
The IQ10 is a product which can be found in our showroom at any time. We would love to invite you to our Experience Center to come and listen to the product yourself. Appointments can be made via phone or e-mail.
|Configuration:||Powered Two-Way Loudspeaker|
|Frequency Response:||55 Hz – 18 kHz ±3 dB | 50 Hz – 20 kHz -10 dB|
|Transducers:||1 x 10" (256 mm) LF driver | 1 x 1" (25.4 mm) HF compression driver|
|Maximum SPL:||129 dB peak|
|Output power:||2500 W|
|Nominal Dispersion:||90° H x 60° V @ -6 dB points|
|ULTRANET digital audio networking:||2 x RJ45|
|Connectors:||2 x combo jack/XLR | Neutrik powerCON input 20A and link 15A|
|User DSP Functions:||Positioning, Sound mode Sound modeling, FBQ|
|Dimensions:||526 x 324 x 316 mm(20.7 x 12.7 x 12.4")|
|Weight:||17.2 kg (38 lbs)|
|Accessories:||IQ10-WB Steel wall bracket (not included)|
|Enclosure:||Injection-moulded polypropylene enclosure|
|Warranty:||10 year factory warranty*|
