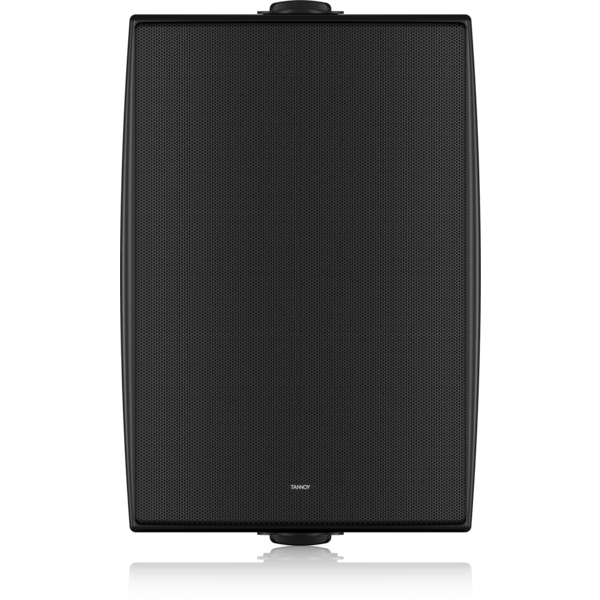

Tannoy DVS 8 - Install Loudspeaker

--,-- Excl. tax In stock (1)
8" Coaxial Surface-Mount Loudspeaker for Installation Applications Read more
  • 24/7 support
  • in house training
  • in house service centre
  • 055 538 66 88

Specifications

Brand:
Tannoy
Weight:
5.7 kg (12.6 lbs)
Transducers:
Coaxial | LF: 200 mm (8.00") | HF: 20 mm (0.79)
Nominal Dispersion:
80° conical
Maximum SPL:
108 dB - 114 dB
Connectors:
Euroblock type removable locking connector with screw terminals with “loop through” facility
Dimensions:
451.8 x 290.0 x 296.0 mm (17.79 x 11.42 x 11.65")
Accessories:
Yoke bracket (included)
Enclosure:
ABS
Color:
Black
Packed Quantity:
2
Warranty:
10 years manufacturer's warranty*
Sensitivity (1Watt @ 1 meter):
90 dB
Configuration:
Coaxial, Surface-mount
Frequency Response:
75 Hz - 20 kHz @ -3 dB | 60 Hz - 30 kHz @ - 10 dB
Power:
70 W - 280 W
Transformer Taps:
-
Grill:
Aluminium, painted
Transformer setting:
-
