Specifications
Information

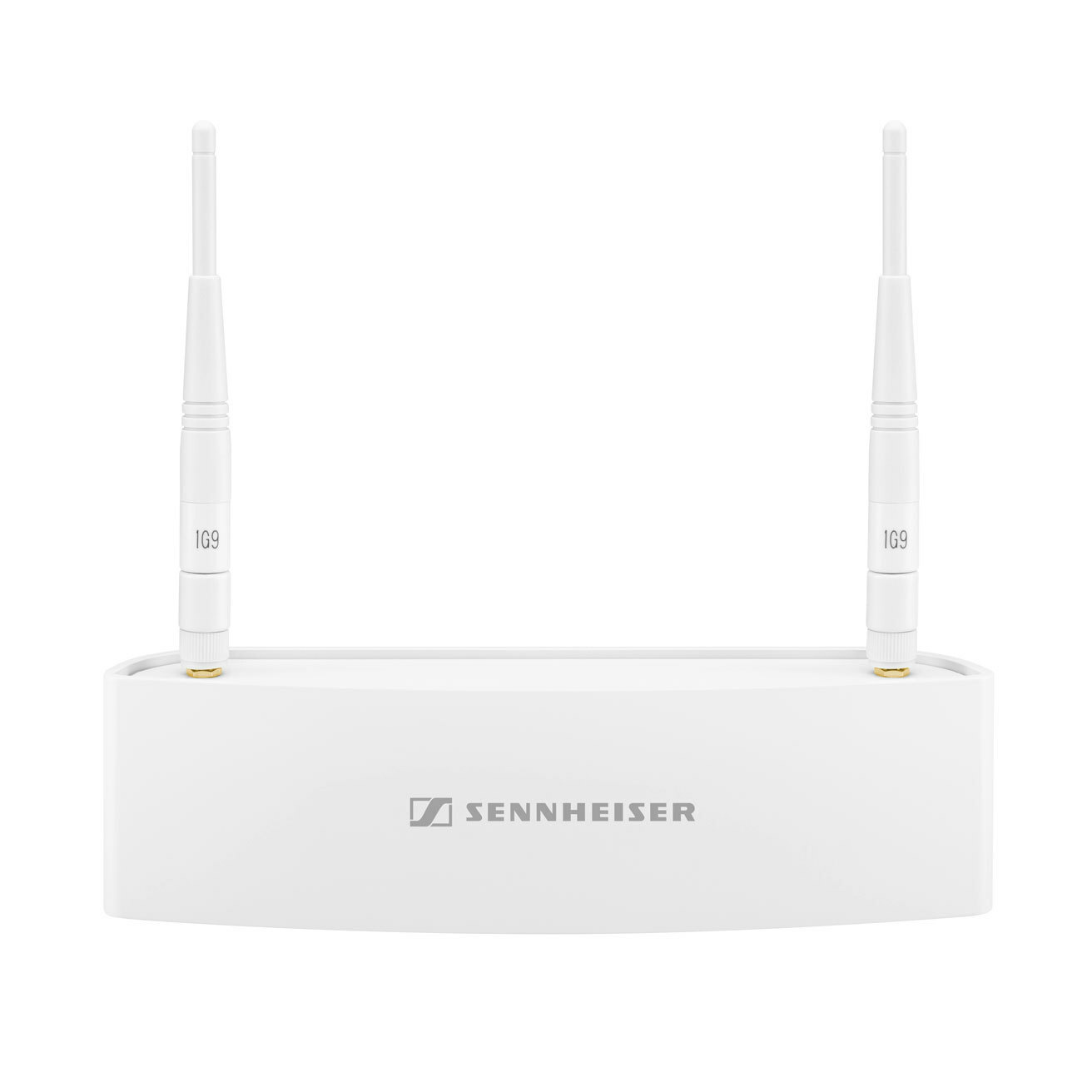

The wallmount antenna, consisting of two white rod antennas tuned to the 1.9 GHz frequency range and a rugged metal housing, shall be designed for unobtrusive antenna wall or tripod mount applications. The metal housing shall have two connectors for attaching the rod antennas to the top and shall provide a 3/8" internal thread at the bottom for tripod attachment as well as two 9 mm (0.35") mounting holes at the rear for wall attachment. Integrated R-SMA sockets on the bottom side allow for a direct connection of the antenna cables, thus minimizing installation effort. The dimensions (W x D x H) shall be 225 x 53 x 60 mm (8.86" x 2.09" x 2.36"). Weight shall be 669 grams (23.6 oz). The color of the wallmount antenna shall be white. The wallmount antenna shall be the Sennheiser AWM 2. Suitable antenna cables in different lengths shall be available as accessories.
FEATURES
• Unobtrusive antenna wall or tripod mounting
• Robust metal housing
With the AWM 2 and AWM 4, the antennas can be installed in an optimum way and nearly invisible, in case the stationary receiver shall be invisible or needs to be further away. It can be easily mounted on a mobile microphone tripod or permanently installed on a wall.
DELIVERY INCLUDES
• Metal housing
• 2 antennas
• Mounting instructions
