Lab Gruppen LUCIA 60/2M - EU

--,-- Sans les taxes en rupture de stock
60W decentraized power, Matrix Lire plus
  • 24/7 support
  • in house training
  • in house service centre
  • 055 538 66 88

Spécifications

Marque:
Lab Gruppen
Numéro de l'article:
000-DFQ01-00010
Disponibilité:
en rupture de stock

Informations

LUCIA 60/2M

Read the full datasheet here.

The quick start guide is readable here.

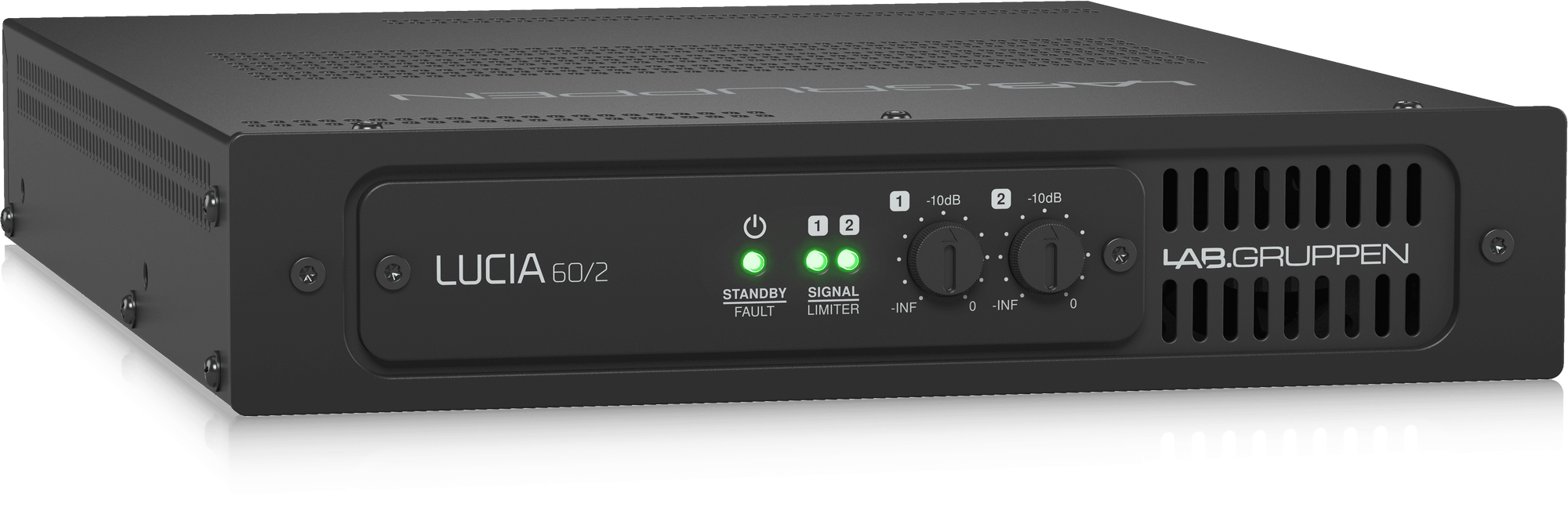

Compact 2 x 30 W Matrix Amplifier for Installation Applications

  • Compact matrix amplifier which offers full output power across a range of loads with 2 x 30 W into 8, 4 or 2 Ohms
  • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
  • 4 x 4 matrix allows mixing and routing all inputs to amplifier output channels and 2 balanced line level outputs
  • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows* and Mac*
  • Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
  • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
  • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
  • Optimized presets available for a wide range of loudspeaker models for fast configuration
  • Enhanced Bass Profile for extended LF response with small loudspeakers
  • Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
  • Efficient Class-D amplifier with low distortion and minimal heat dissipation
  • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
  • Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
  • Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
  • Universal power supply supports 100
    - 240 V AC at 50 or 60 Hz
  • Intelligent fan control for silent operation at idle and at lower output levels

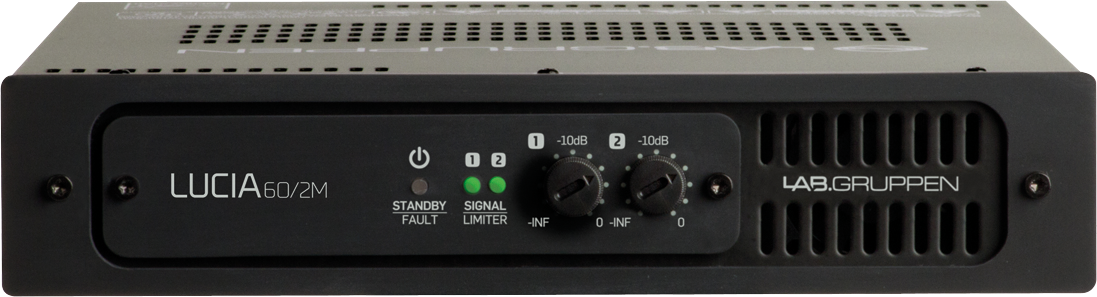

  • Front panel power and fault indication as well as per-channel signal LED and attenuation knob

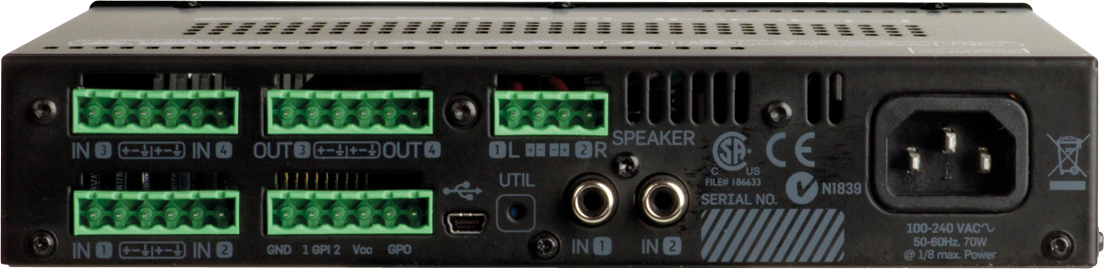

  • Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
  • Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
  • Rackmount kit, pole-mount kit and wall panel kits available as accessories
  • 10-Year Warranty Program*
  • Designed and engineered in Sweden
