ZiKe Labs Rack splitter with hardwired fanouts, 48ch Plus

--,-- exkl. MwSt. Nicht auf Lager
48-channels audio splitter by ZiKE Labs is the ideal device for distributing a signal to multiple locations at the same time i.e.: to several mixers, FOH mixers, in-ear monitor systems, stage monitors, OB van means outside broadcast van, etc. devices. Lesen Sie mehr
  • 24/7 support
  • in house training
  • in house service centre
  • 055 538 66 88

Eigenschaften

Marke:
ZiKe Labs
Artikelnummer::
610-48-12-2510
Verfügbarkeit:
Nicht auf Lager

Informationen

48-channels audio splitter by ZiKE Labs is the ideal device for distributing a signal to multiple locations at the same time i.e.: to several mixers, FOH mixers, in-ear monitor systems, stage monitors, OB van means outside broadcast van, etc. devices.

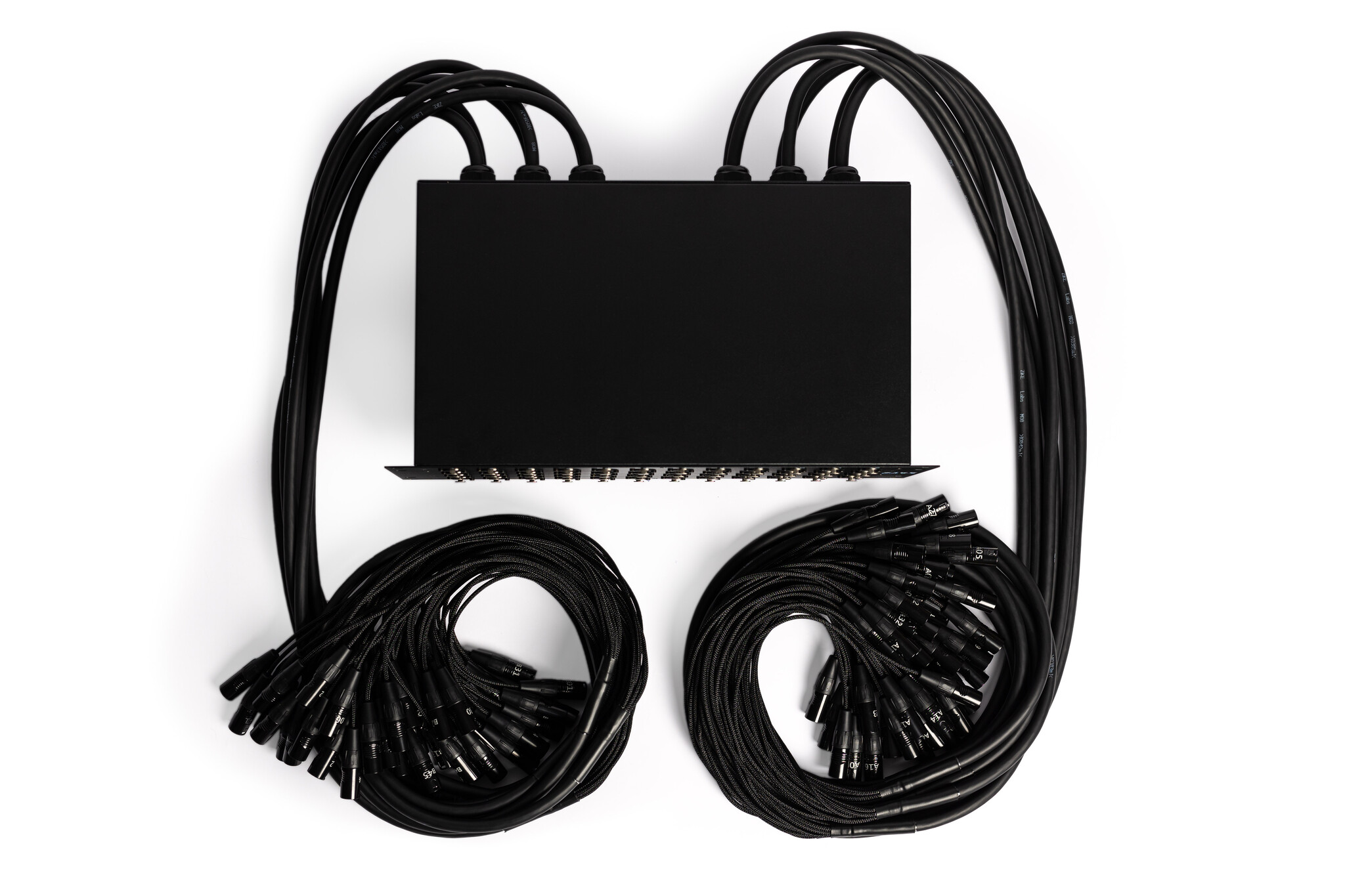

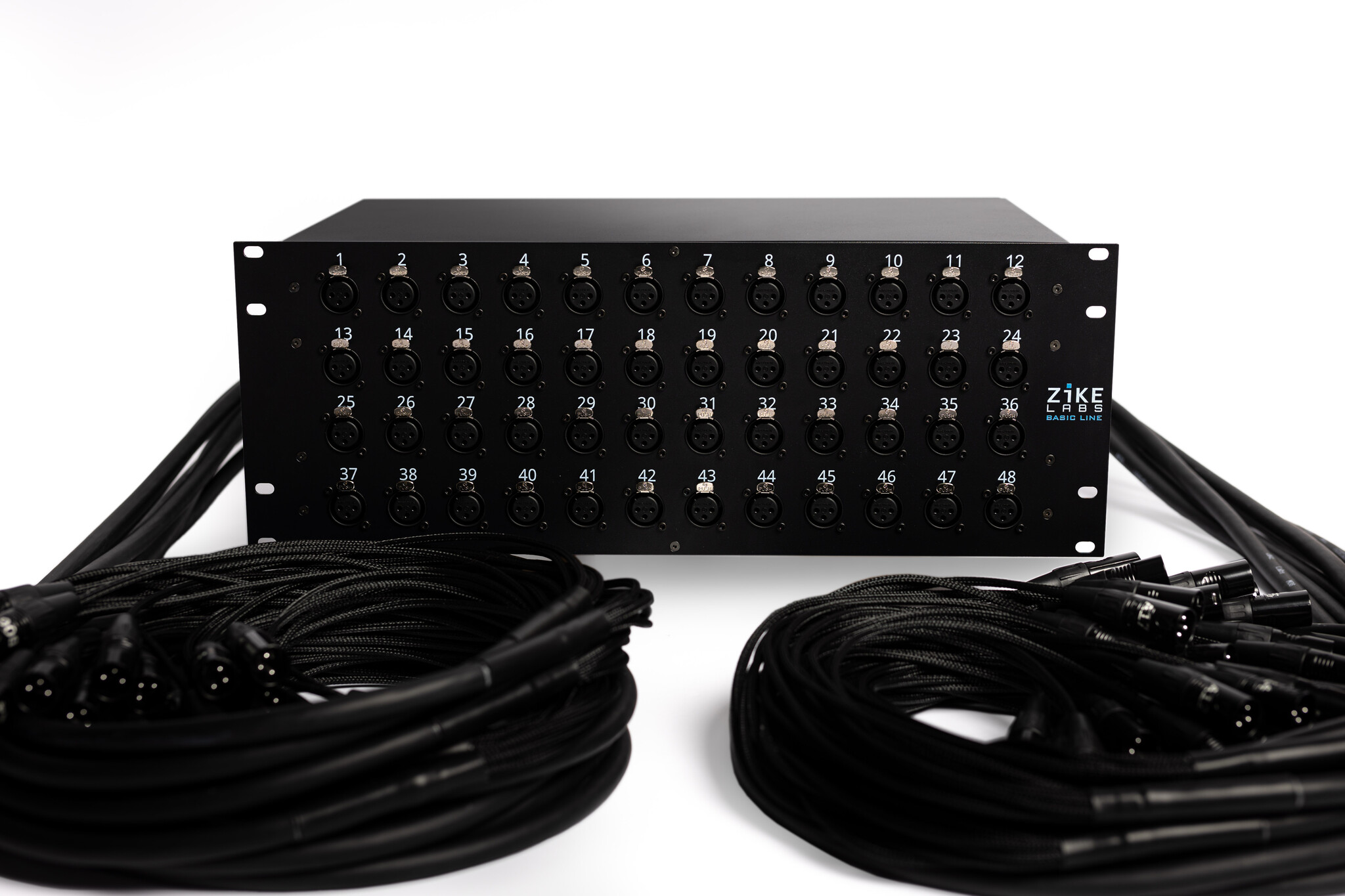

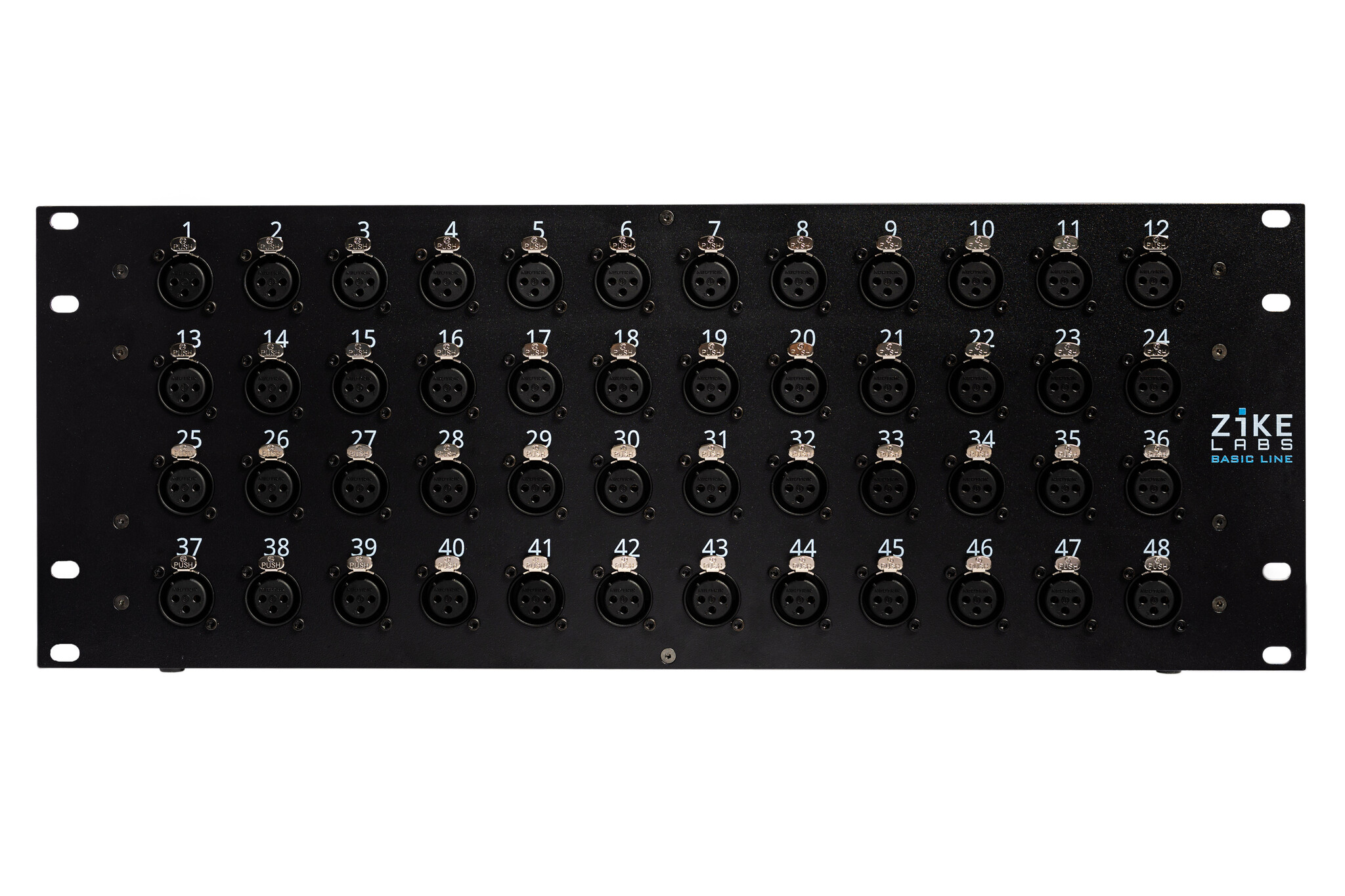

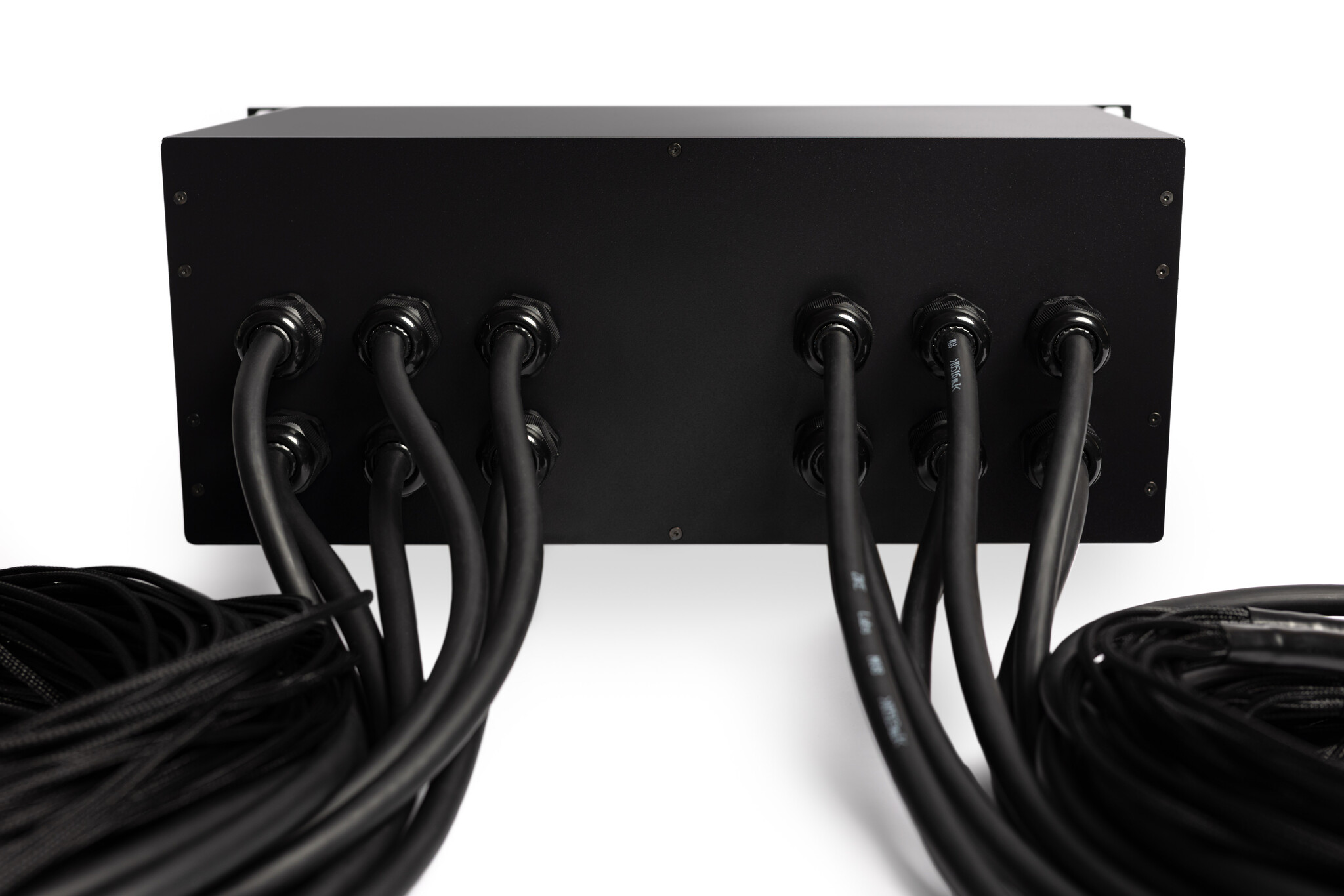

ZiKE Labs presents a proprietary, simple 48-channels passive non-separated audio splitter with fixed extensions on 8-pair Bitner cable. The fanouts are protected with polyester braid. The splitter has a powder-coated metal casing in 19" rack standard and 4U height. The splitter's legible descriptions were made using UV printing, the descriptions on the connectors were made using laser engraving.



Splitter type: passive
Separation: no
Number of input channels:48
Input connectors: NC3FAAH
Outputs Per Channel: 2
Output connectors: Rean RC3M
Gnd lift: no
Breakout length: 2,5 m
Fly end length: 50 cm
Outputs numbering: A01-A48, B01-B48
Housing format: Rack 19”, 4U
Housing: matte black paint finish on durable metal housing
Height: 17,78 cm
Width: 48,3 cm
Depth: 25 cm
Weight: 14 kg
