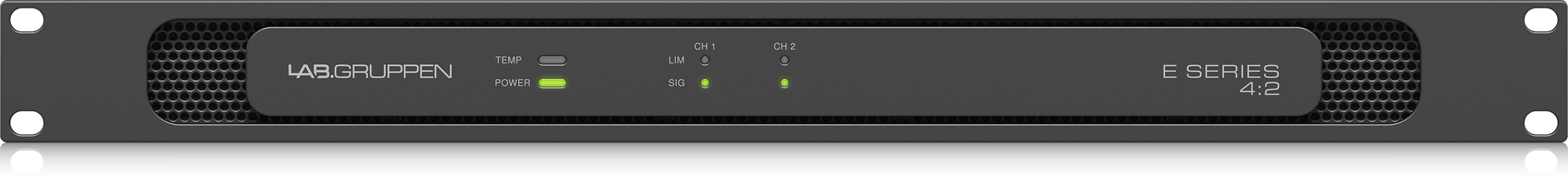

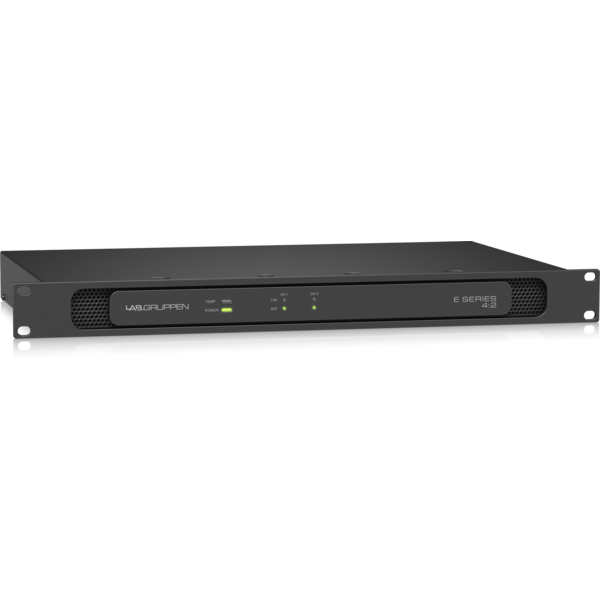

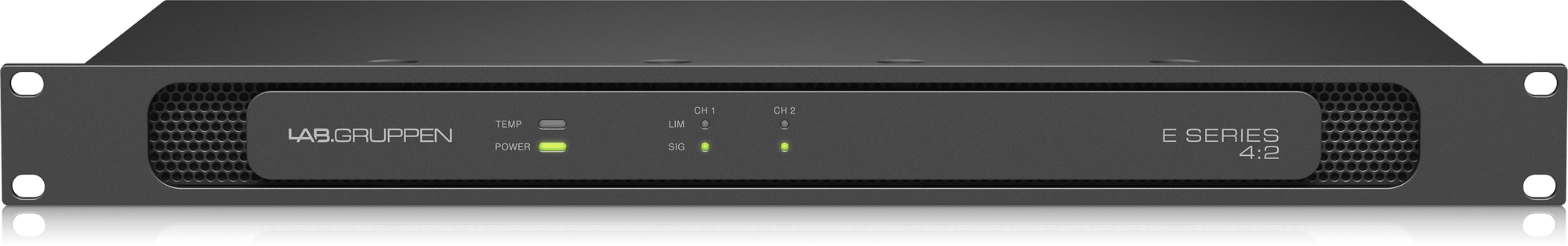

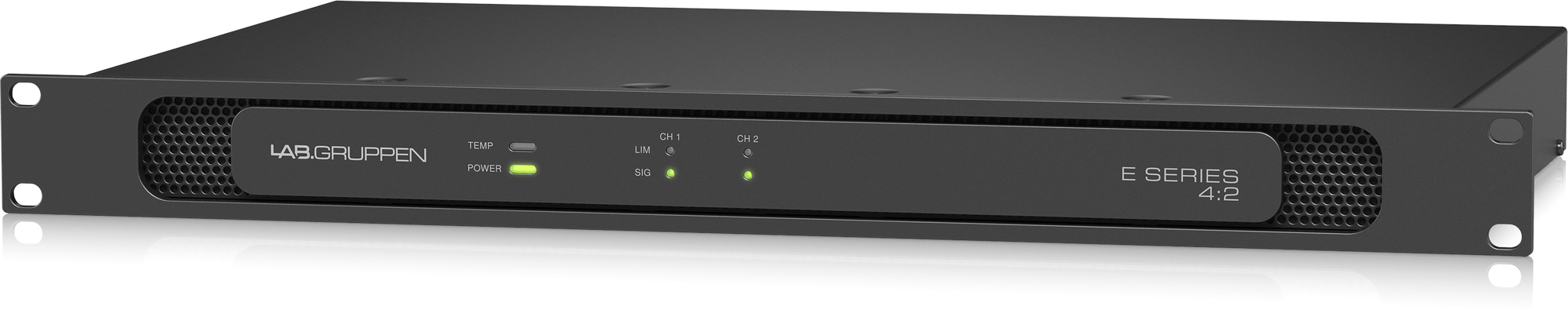

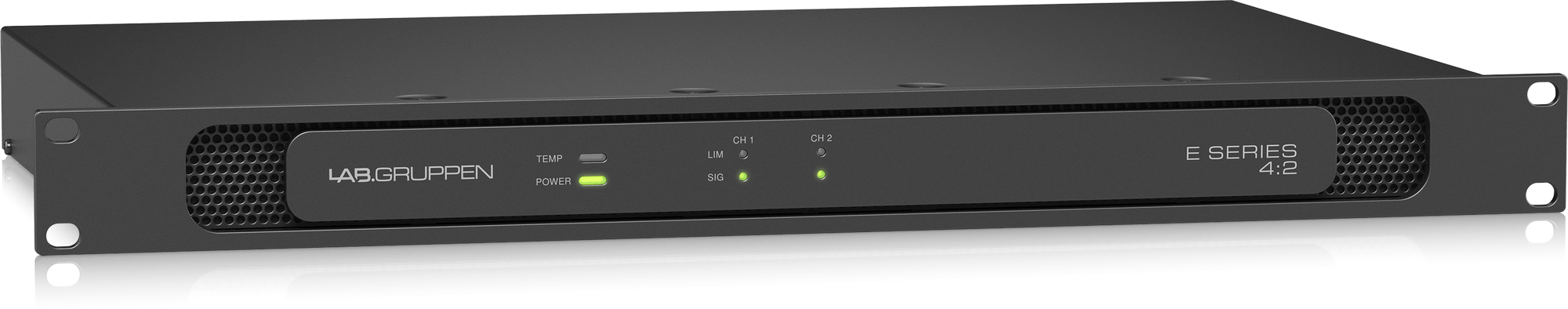

Lab Gruppen E 4:2 - Leistungsverstarker
€--,-- exkl. MwSt.
Auf Lager (3)
400 Watt Amplifier with 2 Flexible Output Channels for Installation Applications Lesen Sie mehr
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Eigenschaften
Marke:
Lab Gruppen
Number of powered channels :
2
Total output all channels driven :
400W
Sensitivity and Maximum Output Power (single ch. max) 2 Ω load:
200 W
Sensitivity and Maximum Output Power (single ch. max) 4 Ω load:
200 W
Sensitivity and Maximum Output Power (single ch. max) 8 Ω load:
200 W
Sensitivity and Maximum Output Power (single ch. max) 16 Ω load:
200 W
Sensitivity and Maximum Output Power (single ch. max) 70 V load:
200 W
Sensitivity and Maximum Output Power (single ch. max) 100 V load:
200 W
Max output voltage per channel:
200 W
Max output current per channel :
Asymmetric load operation:
RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency.
THD (20 Hz - 20 kHz @ 1 W into 8 Ω):
<0.1%
THD @ 1 kHz, 1 dB below clipping:
<0.05%
Signal-to-noise ratio:
>106 dBA
Channel separation (crosstalk) @ 1 kHz :
>70 dB
Frequency response:
2 Hz - 40 kHz
Input impedance:
20 kΩ
Input common mode rejection, CMR :
50 dB
Output impedance:
25 mΩ
Limiters and Gain:
Dimensions (HWD):
Weight:
Finish:
Dark grey aluminium front and black steel chassis
Artikelnummer::
000-DFD01-00010
Verfügbarkeit:
Auf Lager (3)
