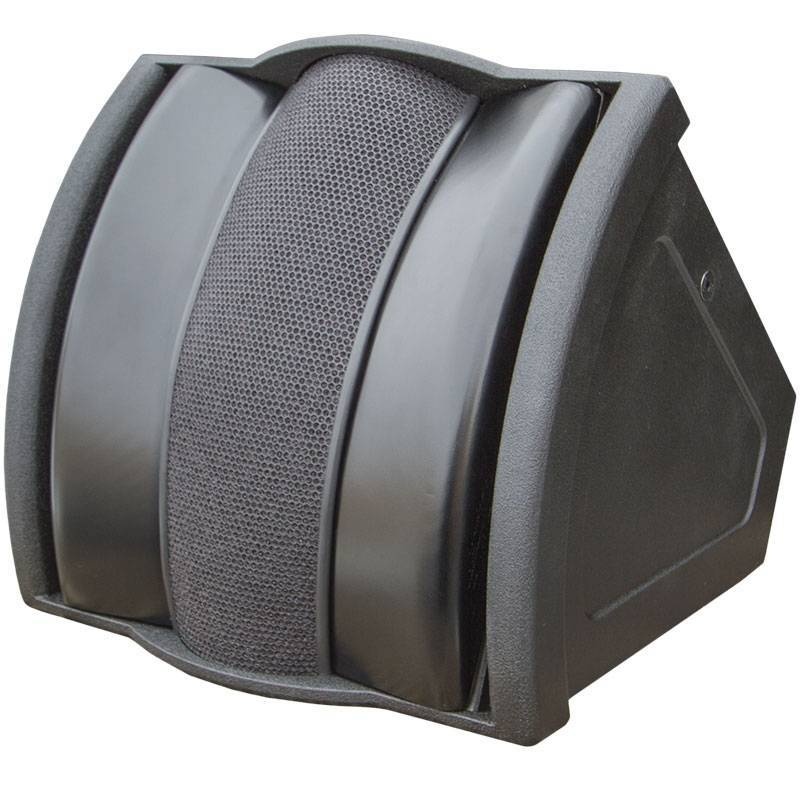

Clair Brothers 10spot Passive Coax Point Source
€--,-- exkl. MwSt.
Nicht auf Lager
Passive Coax Point Src.,10" LF, 2.5" HF, (135°-90°H x 45° V) Lesen Sie mehr
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Eigenschaften
Marke:
Clair Brothers
Schliff:
Schwarze Kunststoffbeschichtung
Empfohlener Verstärker:
CB-PLM5K44 oder CB-D40:4L
Rigging-Punkte:
(8) M10 x 1.5 Thread
Sensibilität (1Watt @ 1 meter):
103 dB SPL
Impendanz:
LF: 8 Ohms | HF: 16 Ohms
Material:
12mm & 18mm Baltische Birke
Gewicht:
35 lbs (15.9kg)
Abmessungen:
418.2 x 417 x 392.6 mm (16.46" x 16.42" x 15.46")
Anschlüsse:
Macht:
600W
SPLmax:
131 dB SPL
Abstrahlwinkel:
Frequenzgang:
90Hz–20kHz (+/- 2dB) | (-10dB Point) 70Hz
Komponenten:
LF: (1) 10" (254mm); VC diam. 2.5" (63.5mm) | HF: (1) VC diam. 2.5" (63.5mm); Ausgang, 1" (25.4 mm)
Bestückung:
Passiv | Coaxial Point Source
Artikelnummer::
10SPOT
Verfügbarkeit:
Nicht auf Lager
Informationen
• Coaxial, Horn Loaded
• Two-Way Passive
• LF Device: 10in (254mm)
• HF Device: Exit 1in (25.4mm); Voice Coil Diameter: 2.5in (63.5mm)
• Asymmetric Horizontal Dispersion: 90° H at Top, 135° H at Bottom Â
• 45° VerticalÂ
• Integral Rigging PointsÂ
• Durable Polyurea Coating
• (2) EP-4 Connectors (1 Male, 1 Female) & (1) 4-Pos. Terminal Strip
